ERCP
Endoscopic retrograde cholangiopancreatography (ERCP) uses a flexible side-viewing duodenoscope to reach the ampulla of Vater under fluoroscopic guidance. This contrasts to a forward viewing scope used in gastroscopy – the ERCP scope is akin to driving a car with the view as you are looking of a side side window whilst driving forwards.This means the operator must have a higher level of understanding of fine tip control ( as intubation is often done blindly) and of the anatomy of the upper GI tract.
The scope’s elevator ( or bridge) and accessory channel allow passage of sphincterotomes, guidewires and retrieval devices for biliary/pancreatic duct therapy and allow angles of instruments to be modified.
Unlike routine gastroscopy, ERCP is primarily therapeutic (stone extraction, stenting, sphincterotomy) and usually requires advanced sedation (In Europe and America this often general anaesthesia but in the UK it is primarily deep sedation).
Trainees should master endoscope handling (torque steering, elevator use), fluoroscopy technique, and familiarize with ERCP accessories (balloons, baskets, stents, guidewires).
Common Indications for ERCP
Cholangitis requiring biliary drainage (acute ascending cholangitis with biliary obstruction)
Choledocholithiasis (bile duct stones) causing jaundice or pancreatitis (high-probability stones on imaging)
Biliary strictures (benign or malignant) leading to obstructive jaundice (e.g. pancreatic head cancer, cholangiocarcinoma)
Postoperative bile leaks or fistulae (e.g. after cholecystectomy)
Pancreatic duct disorders requiring therapy (e.g. chronic pancreatitis with duct strictures or pseudocyst, leaks)
Other specialized cases: ampullary tumors (for biopsy/resection), cholangioscopy for indeterminate strictures, pancreatic duct stenting for ESWL, etc.
Consent and Risk Discussion
Consent must cover indication, alternatives (e.g. on table laproscopic exploration surgery or conservative managemtn), expected benefits and procedure limitations.
Procedure risks : ERCP has a high complication rate (~10–14%).
Key risks include post-ERCP pancreatitis (5–10% risk), bleeding (especially if sphincterotomy is performed), perforation of the duodenum or duct (<1%), and cholangitis/infection. Also cover anaesthesia/sedation risks (aspiration, cardiopulmonary events) and contrast reactions.
Outcomes and alternatives: Emphasize that cannulation may fail in some cases; explain backup plans (repeat ERCP, percutaneous drainage or surgery). Discuss the possibility of staged procedures or additional interventions.
Training and Certification Standards (BSG/JAG)
Prerequisites: Trainees must be fully competent in diagnostic OGD (gastroscopy) and ideally in basic upper-GI therapeutic endoscopy before starting ERCP training
JAG requires attendance at a Basic ERCP Skills course (approved centre)
Case volume and skills: UK guidelines recommend a minimum lifetime experience of ~300 supervised ERCPs with at least 30 formative DOPS logged (roughly one per 10 cases). Trainees should achieve key performance targets (for native papillae): ≥80% selective cannulation (last 50 cases) and high success rates in stone clearance and stent placement
Assessment: Progress is tracked via JETS e-portfolio and ERCP DOPS assessments. Certification (for Schutz level 1–2 cases) is granted only after summative assessment by two trainers (different endoscopy units) confirming competence in all domains.
Quality metrics: BSG’s “Way Forward” framework emphasizes training in high-volume ERCP centres. Recommended case-loads are ≥75 ERCPs/year per endoscopist (aspiring to 100+) and ≥150–200 per centrebsg.org.uk. Quality targets include ≥85% cannulation of virgin papillae and ≥75% CBD stone clearance on first ERCP.These benchmarks guide training goals.
Post-certification mentoring: Both BSG and JAG stress ongoing support. Outcomes improve substantially up to 300–800 cases, so newly certified practitioners should have at least 2 years of structured mentorship and regular performance review.
References: Authoritative UK guidelines (BSG “Way Forward” and ERCP Quality Standards; JAG ERCP training standards) have been used throughoutbsg.org.ukbsg.org.ukthejag.org.uk. Key points on consent and complications follow BSG guidancebsg.org.ukthejag.org.uk.
Endoscopic ultrasound
Endoscopic Ultrasound (EUS)
Endoscopic ultrasound (EUS) combines endoscopy with high-frequency ultrasound to delineate GI wall layers and adjacent structures (pancreas, biliary tree, mediastinum). It underpins high-accuracy staging, tissue acquisition (FNA/FNB) and an expanding range of therapeutic procedures.
Indications — When to Refer for EUS
1) Oncologic staging
Oesophagus/OGJ: High accuracy for local T/N staging to triage neoadjuvant therapy vs surgery; complementary to CT/PET.
Stomach: Useful for early gastric cancer (endoscopic resectability decisions); superior to CT for local T/N in many series.
Pancreas: Best test for small masses, vascular interface, and pNETs; sensitivity for small tumours >90%.
2) Pancreaticobiliary
Suspected choledocholithiasis: Sensitivity >90%; comparable to MRCP and avoids ERCP risks in intermediate probability.

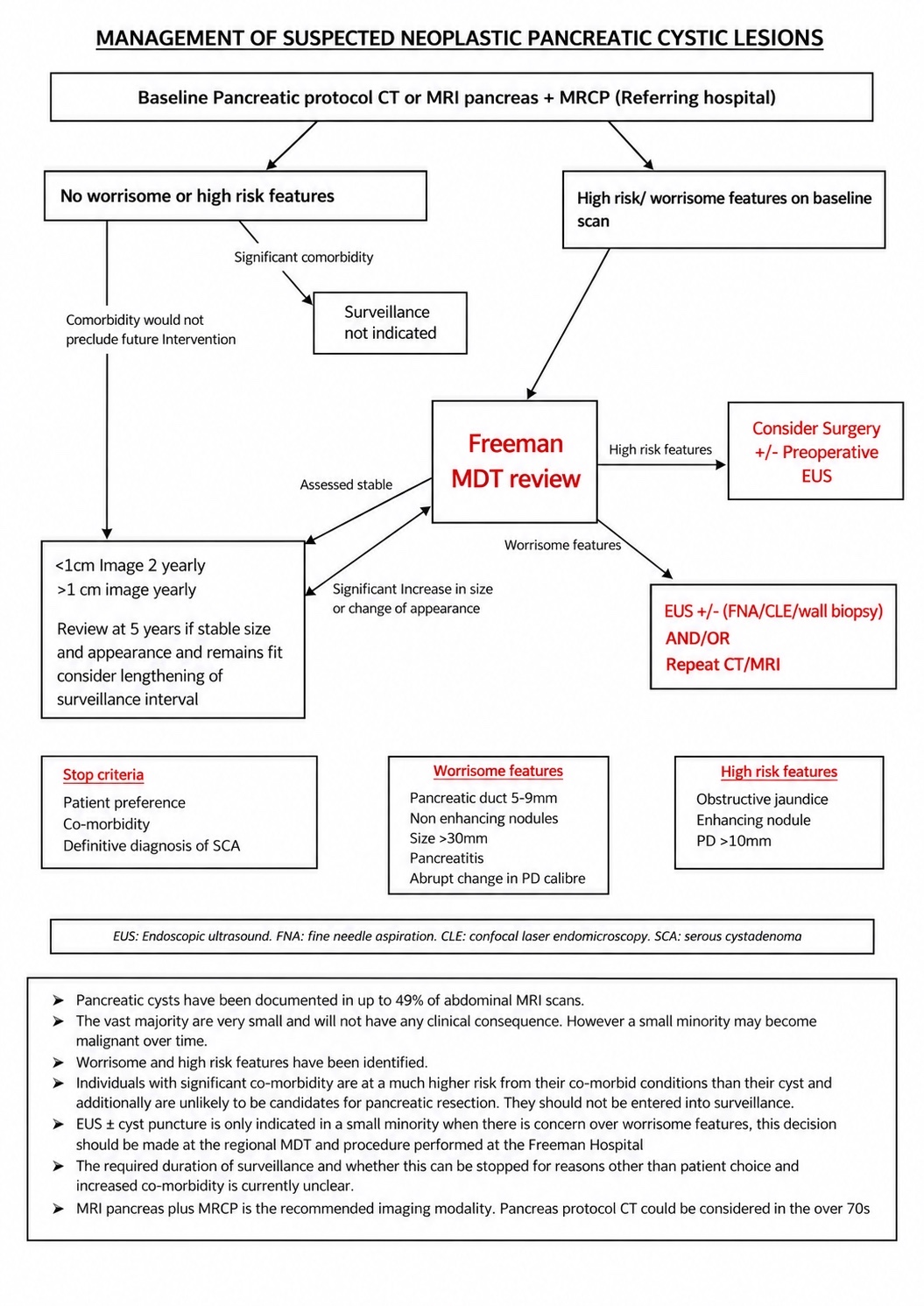

Pancreatic cysts: Morphology + EUS-FNA (fluid CEA/cytology) to stratify mucinous potential and high-risk features.
Chronic pancreatitis assessment: Structural changes when CT/MRI/US equivocal; correlate clinically to avoid over-calling age-related change.
3) Subepithelial lesions
Define layer of origin, echotexture, margins; EUS-FNA/biopsy for GIST vs leiomyoma and extramural compression.
4) Mediastinal nodes / lung cancer staging
EUS-FNA of posterior/para-oesophageal stations; complementary to EBUS for near-complete minimally invasive mediastinal staging.
5) Therapeutic EUS (where expertise available)
Coeliac plexus block/neurolysis for pancreatic cancer pain.
Transmural pseudocyst drainage (cystogastrostomy) as first-line for suitable collections.

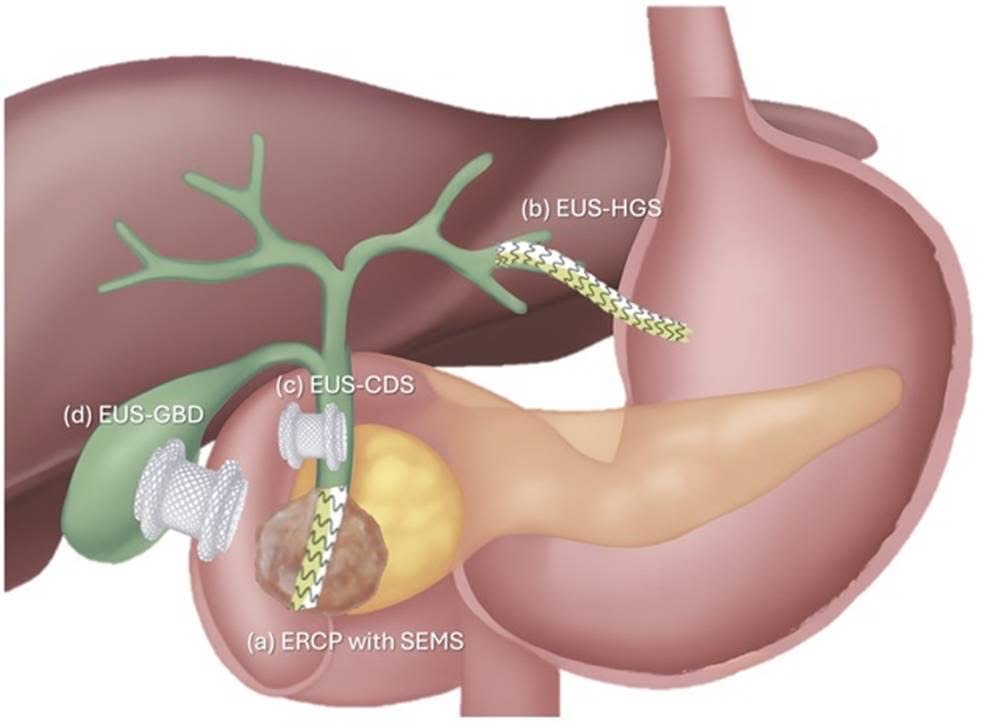

EUS-guided biliary access/drainage after failed ERCP.

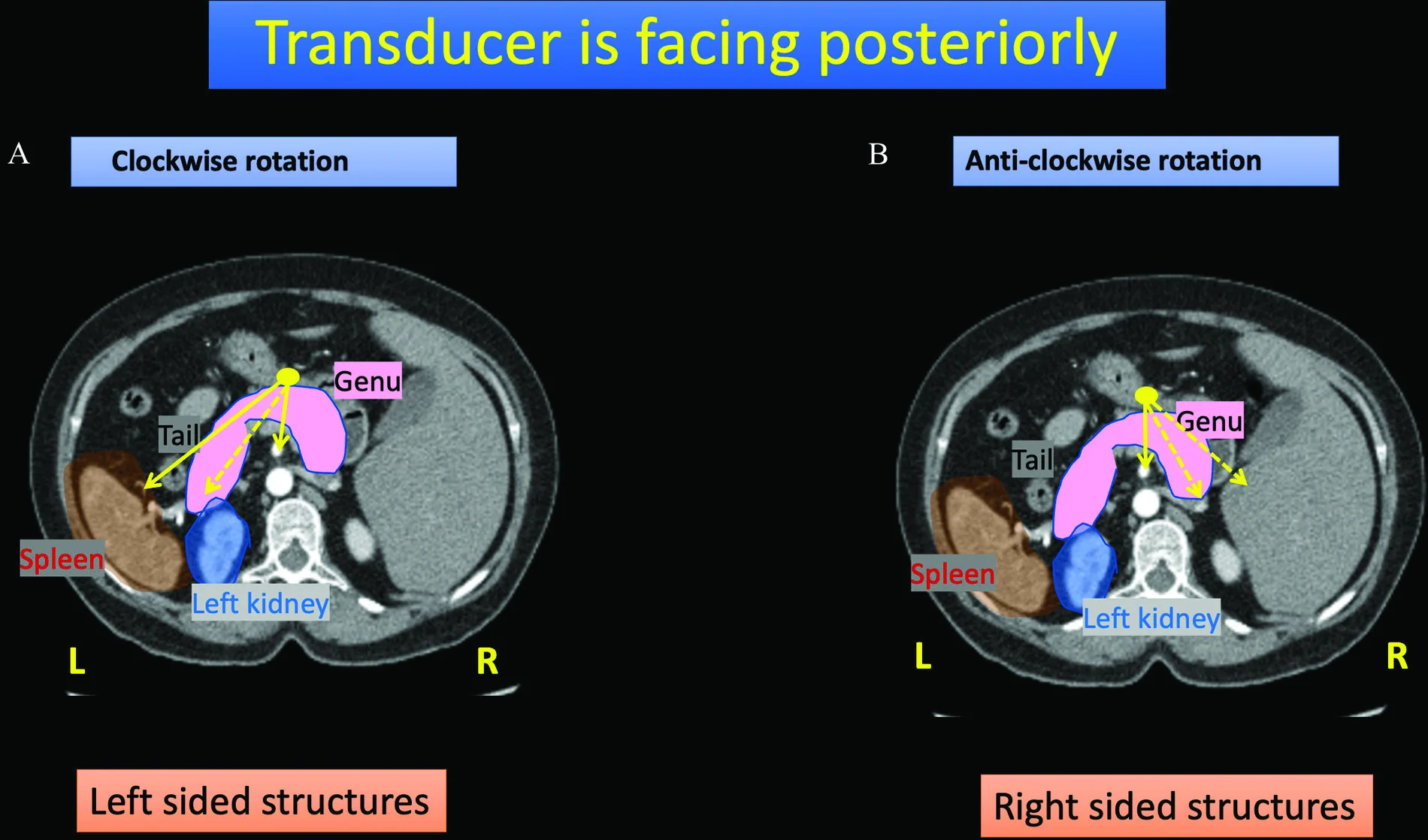

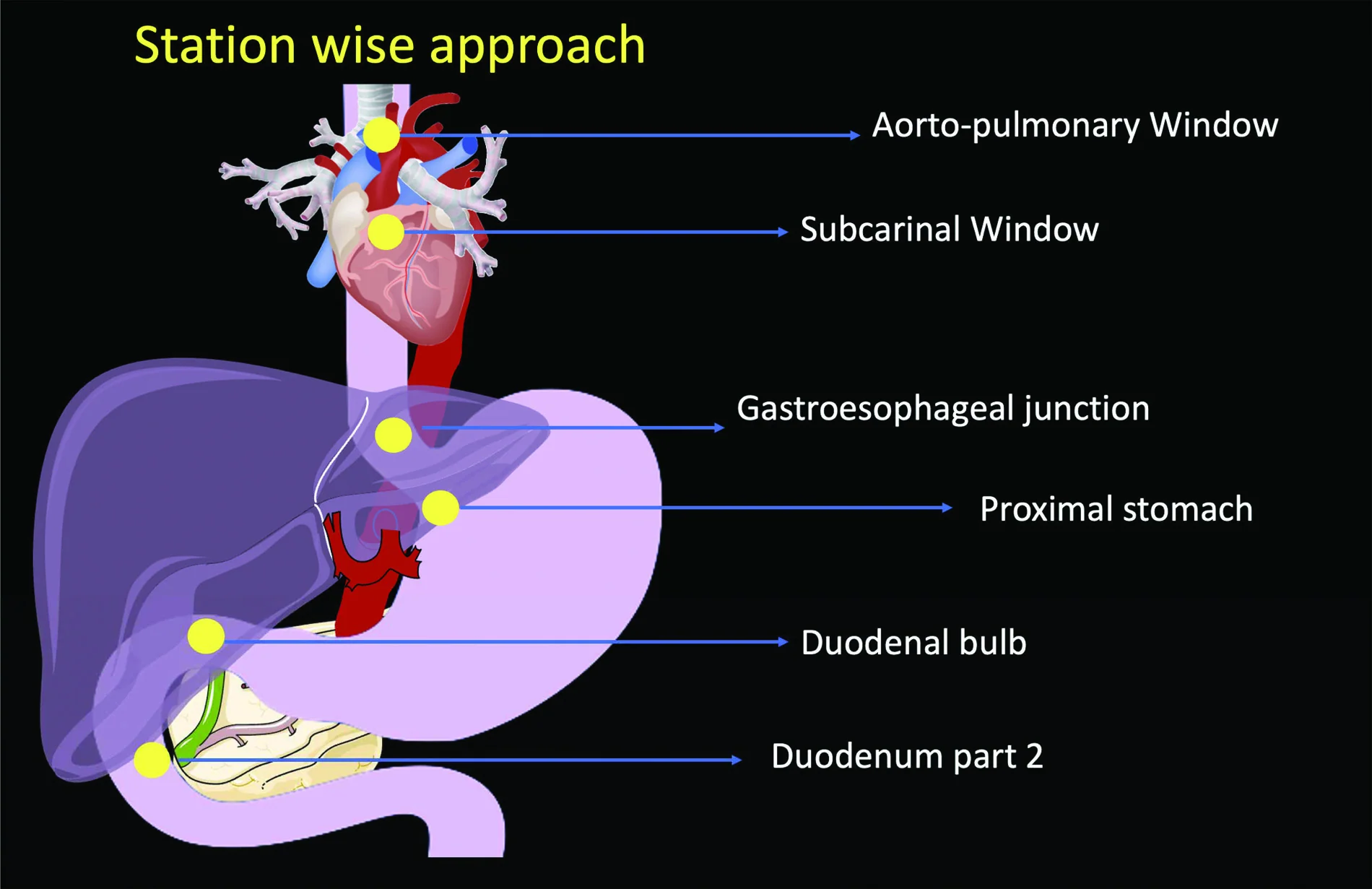

Linear EUS of the Pancreas — Station-Wise Technique (Exam Blueprint)

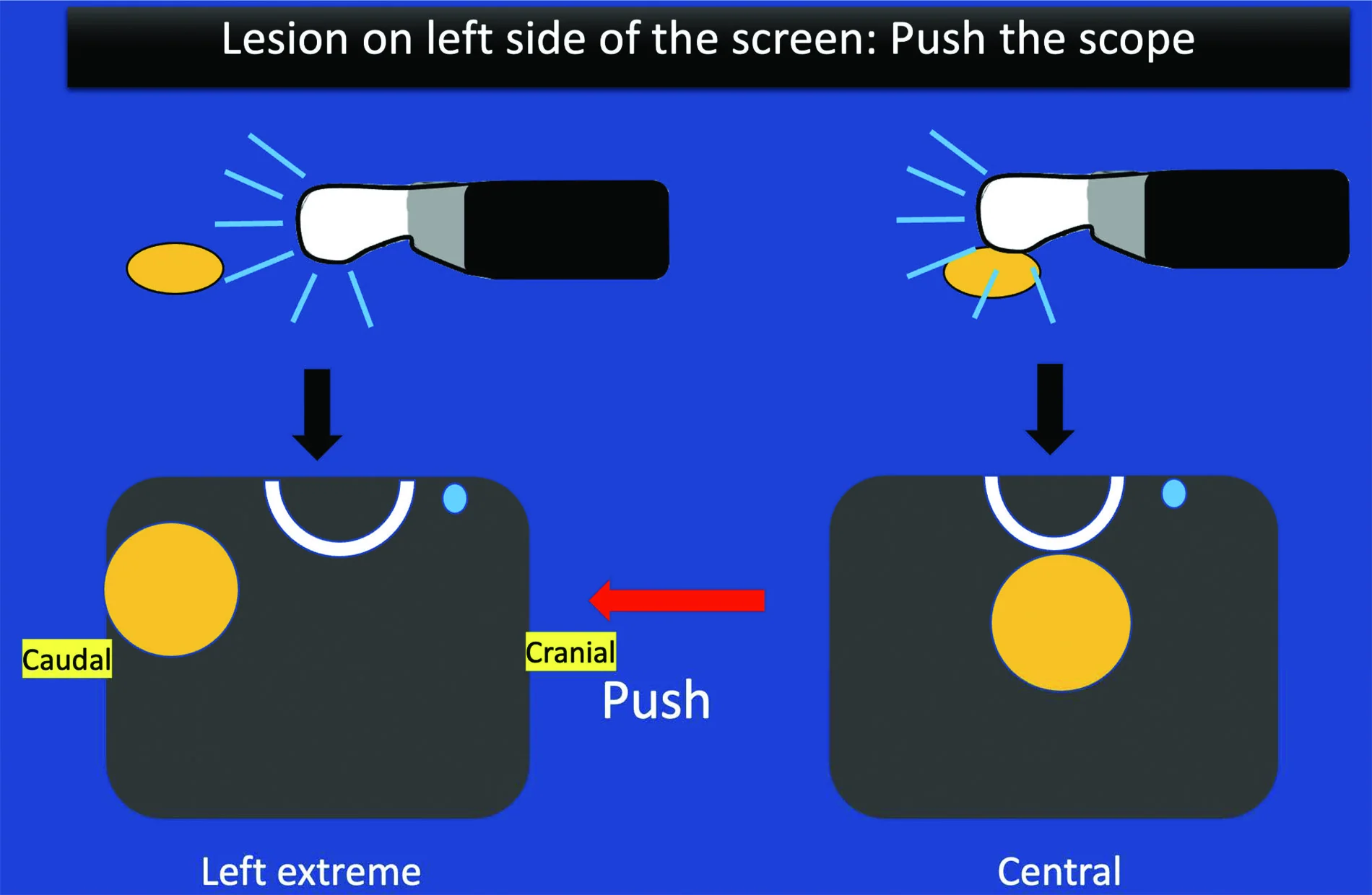

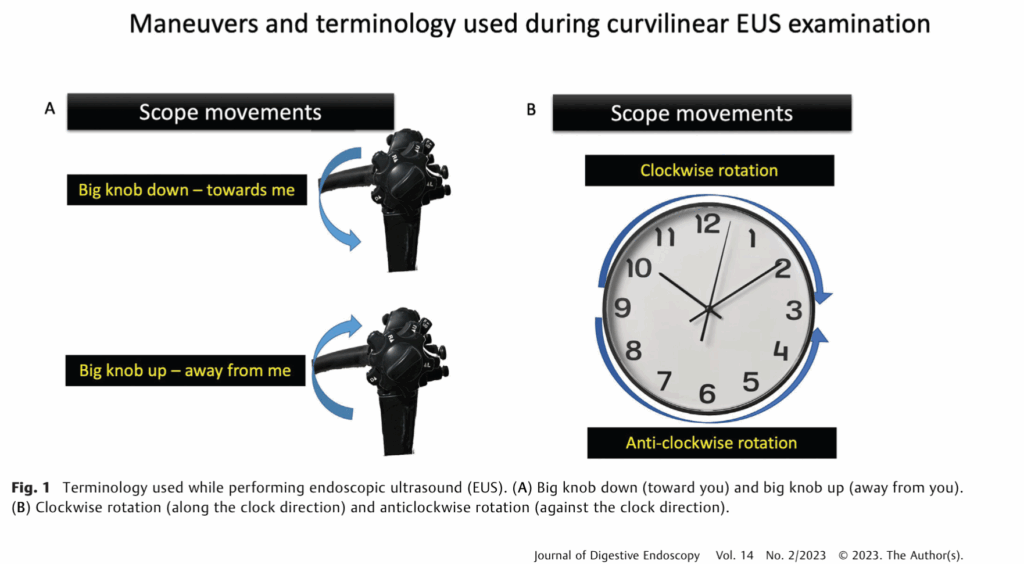

General tips: Optimize coupling (de-air, water instillation), learn the homebase at each station, keep target at 6 o’clock before tracing ducts/vessels, and record labelled clips.
From the stomach (GE junction/body):

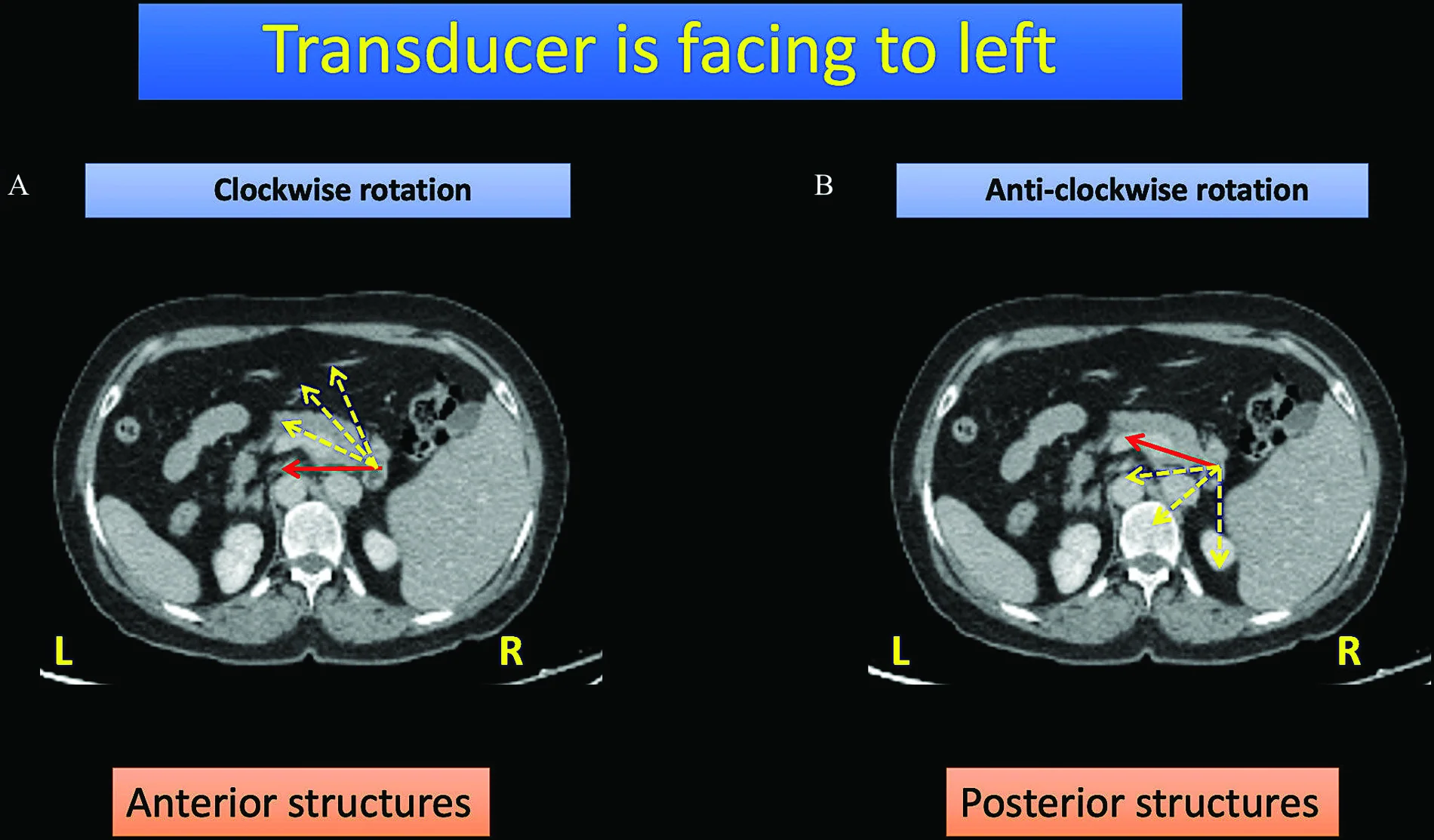

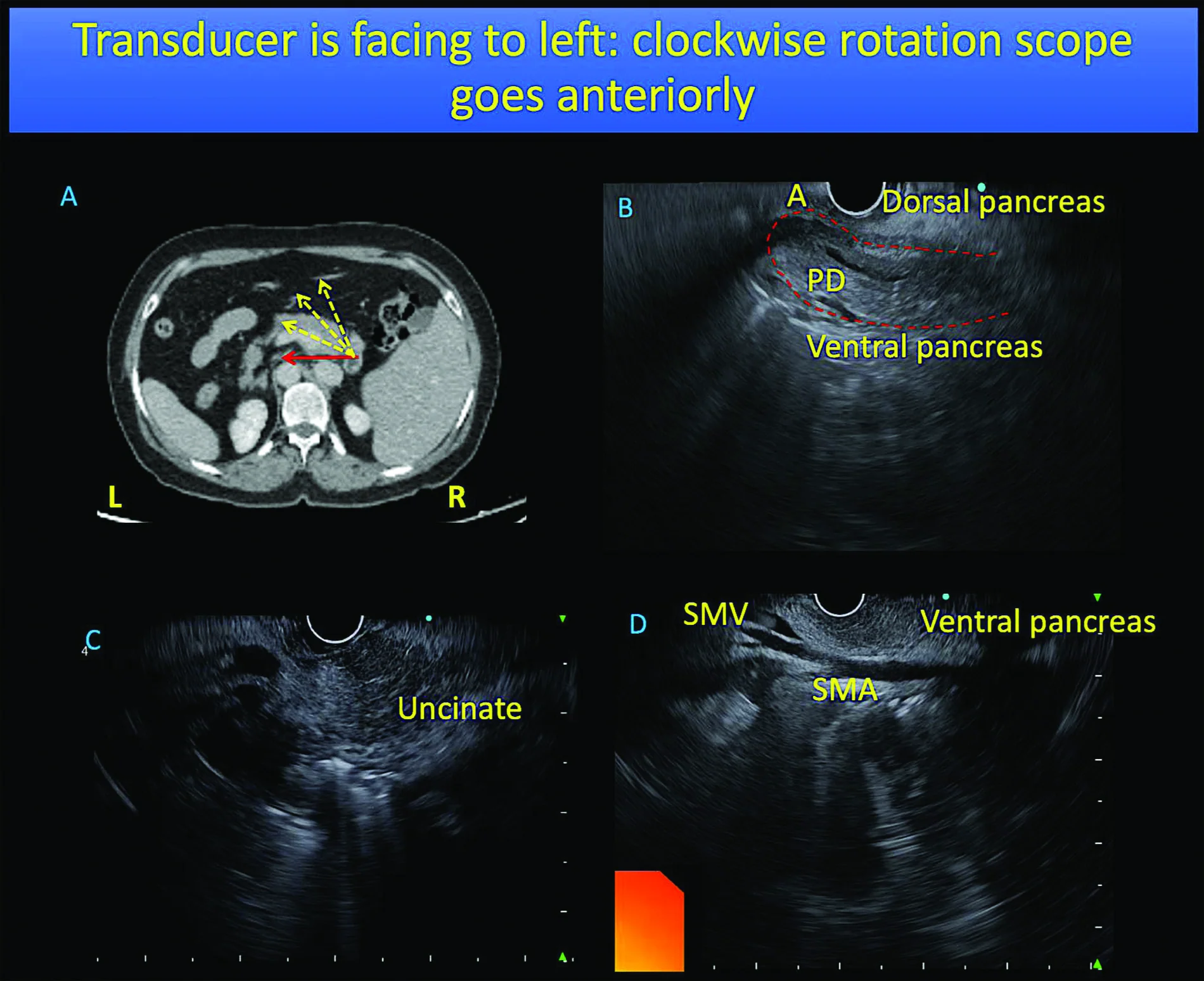

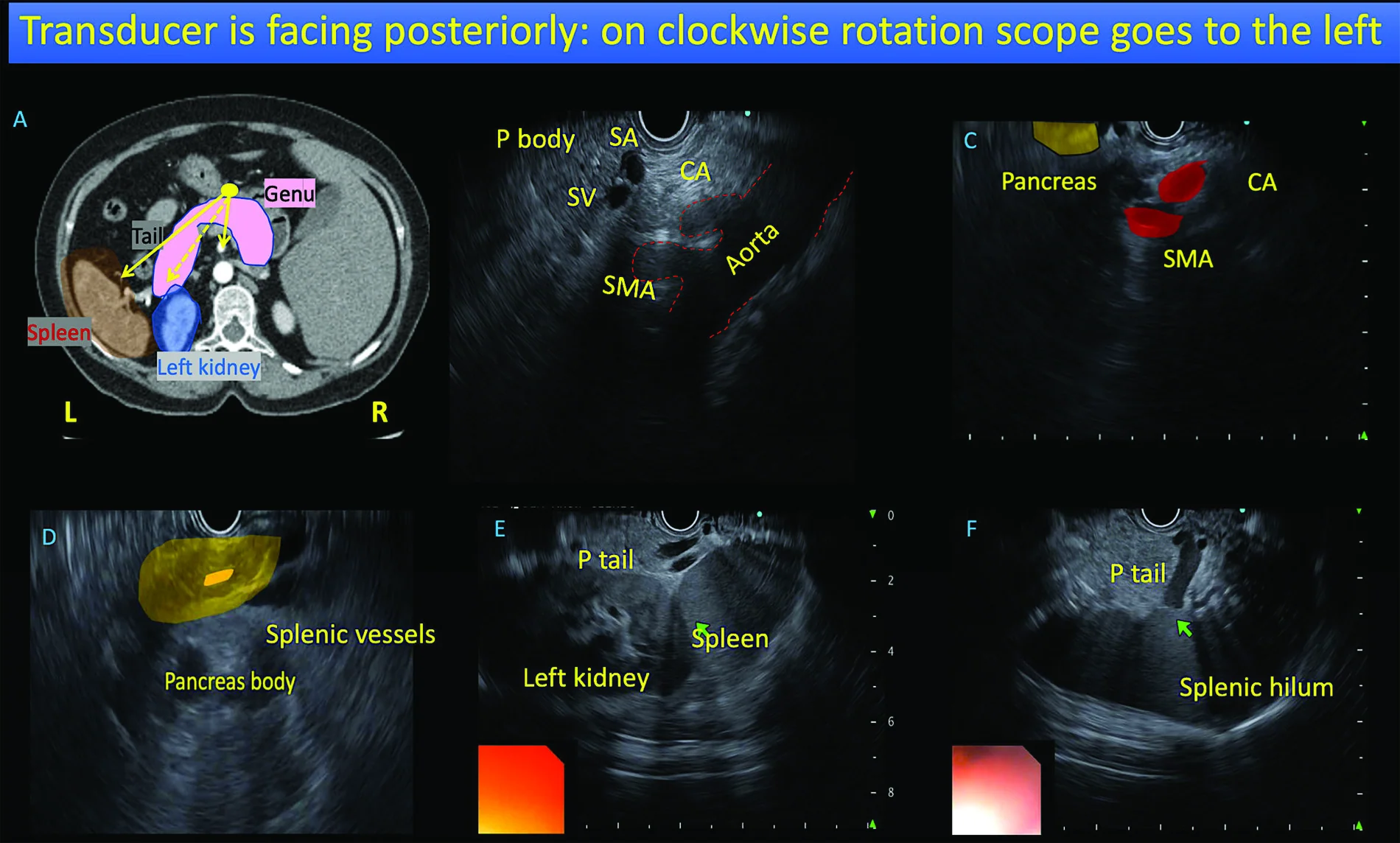

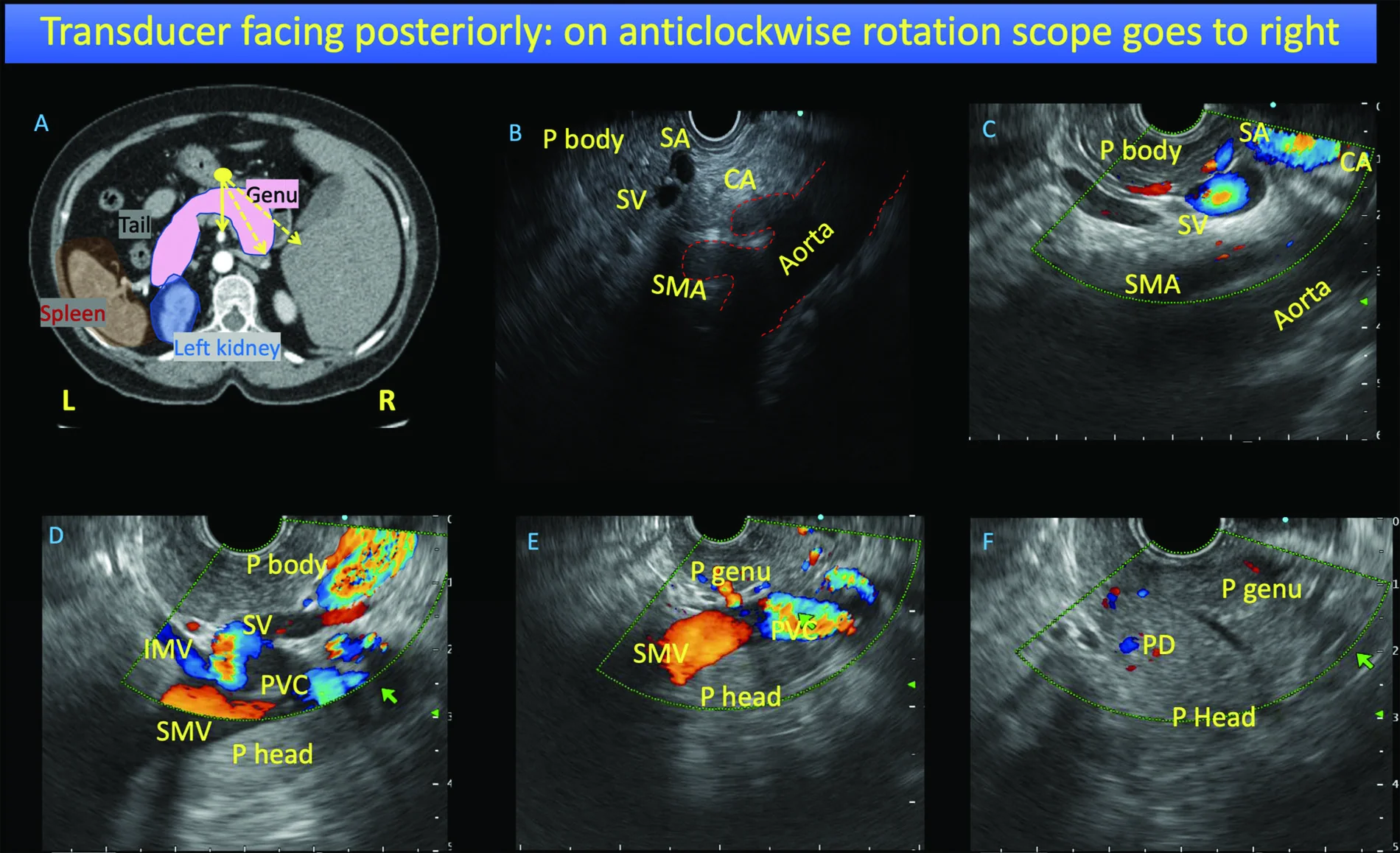

Push method: Homebase = aorta → celiac axis; minimal push brings pancreas into view; clockwise to tail (follow splenic vessels), anticlockwise + push to genu/head.
Pull method: From distal body, withdraw to portal vein confluence (PV+SV+SMV); anticlockwise to genu/head; clockwise to tail.
From the duodenal bulb (D1):
Homebase = main portal vein; classic reverse stack sign (CBD–MPV–CHA versus stomach view). Trace CBD and PD towards the ampulla; use water + release pressure to avoid compressing ducts.

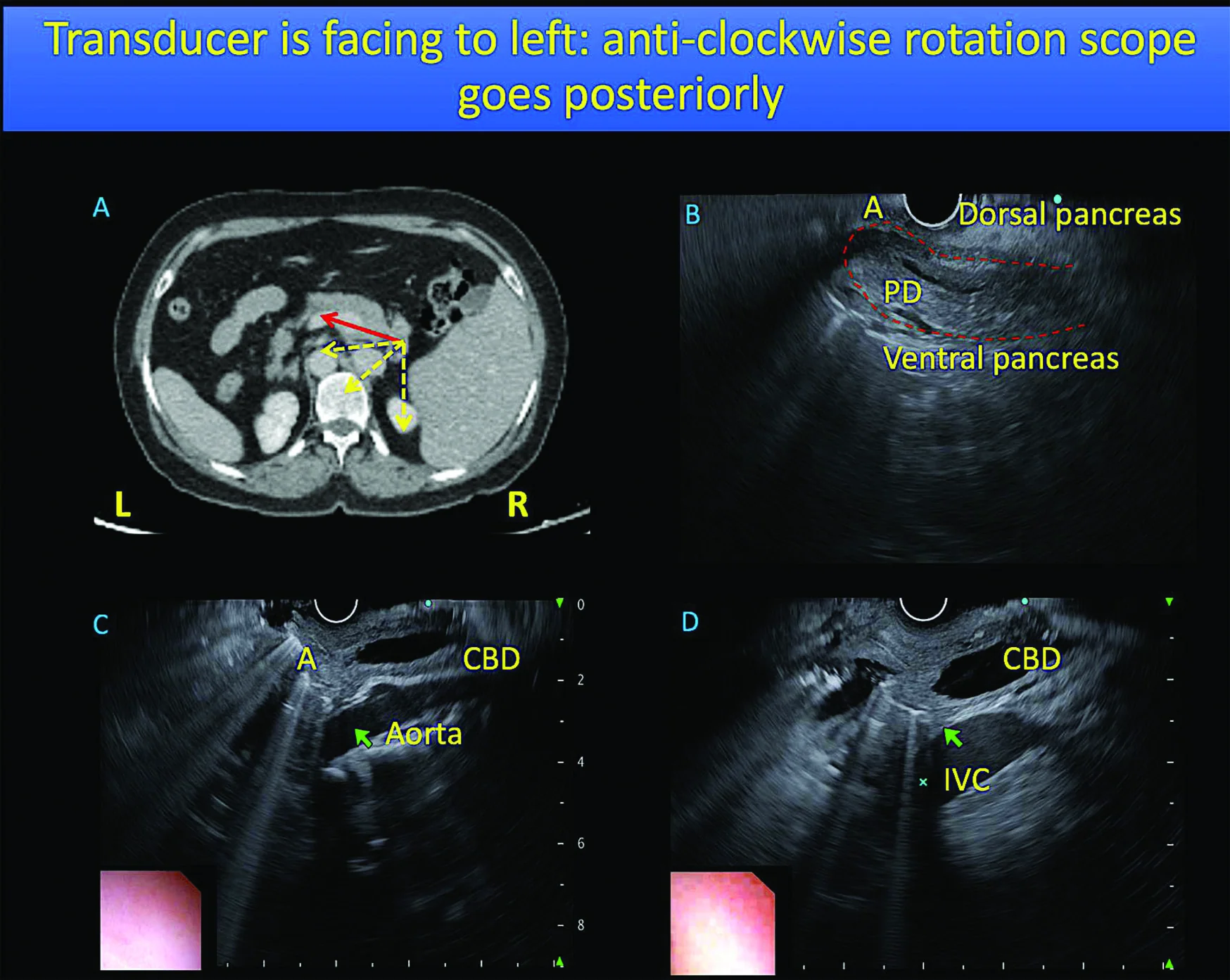

From the descending duodenum (D2):
Homebase = aorta. Withdraw with clockwise torque to see head/uncinate, SMV (closest), and the ampulla (confirm CBD and PD joining). If one duct is unseen, fine torque in opposite direction.
Rosemont Criteria (2009) — Pocket Summary for Chronic Pancreatitis
Major features:
Major A: Hyperechoic foci with acoustic shadowing (calcifications)
Major B: Lobularity with honeycombing
Minor features:
Hyperechoic strands; hyperechoic foci (no shadowing); lobularity without honeycombing; cysts; MPD dilatation; irregular MPD contour; side-branch dilatation; hyperechoic duct wall.
Categories:
Consistent with CP: Major A + Major B or Major A + ≥3 minor or Major B + ≥3 minor
Suggestive: Major A/B + <3 minor or ≥5 minor
Indeterminate: 3–4 minor, no major
Normal: <3 minor, no major
Use in clinical context (history, pain phenotype, pancreatic function, calcific burden) and with cross-sectional imaging; avoid over-calling age-related changes.
Tissue Acquisition — When & How
Solid pancreatic mass: Perform EUS-FNA/FNB; plan needle path to avoid vessels; multiple passes; ROSE if available.
Cystic lesions: Sample only if results change management (CEA/cytology for mucinous/high-risk stratification).
Nodes (mediastinal/peripancreatic): EUS-FNA for diagnosis and staging when imaging is equivocal.
Rapid Reporting Checklist
Indication & pre-test probability (e.g., “intermediate risk CBD stone”, “staging OGJ T1b”)
Stations completed (stomach GE/body; D1; D2) and completeness (tail→ampulla)
Key landmarks (PV confluence; SMA/SMV; CBD/PD; ampulla)
Lesion description (size, layer of origin, borders, echotexture, ductal contact, vascular invasion)
Rosemont features (if CP query): list major/minor and category
Sampling (needle type/gauge; passes; ROSE; immediate complications)
Therapy (if performed) (e.g., pseudocyst drainage; coeliac neurolysis; EUS-BD)
Conclusion/plan (staging impact, MDT actions, surveillance vs resection vs ERCP)
References (Source Documents Used on This Page)
EUS Indications & Therapeutic Spectrum: Reddy Y, Willert RP. Clinical Medicine (RCP) 2009 — UK-focused review of indications, staging accuracy, EUS-FNA, and therapeutic EUS.

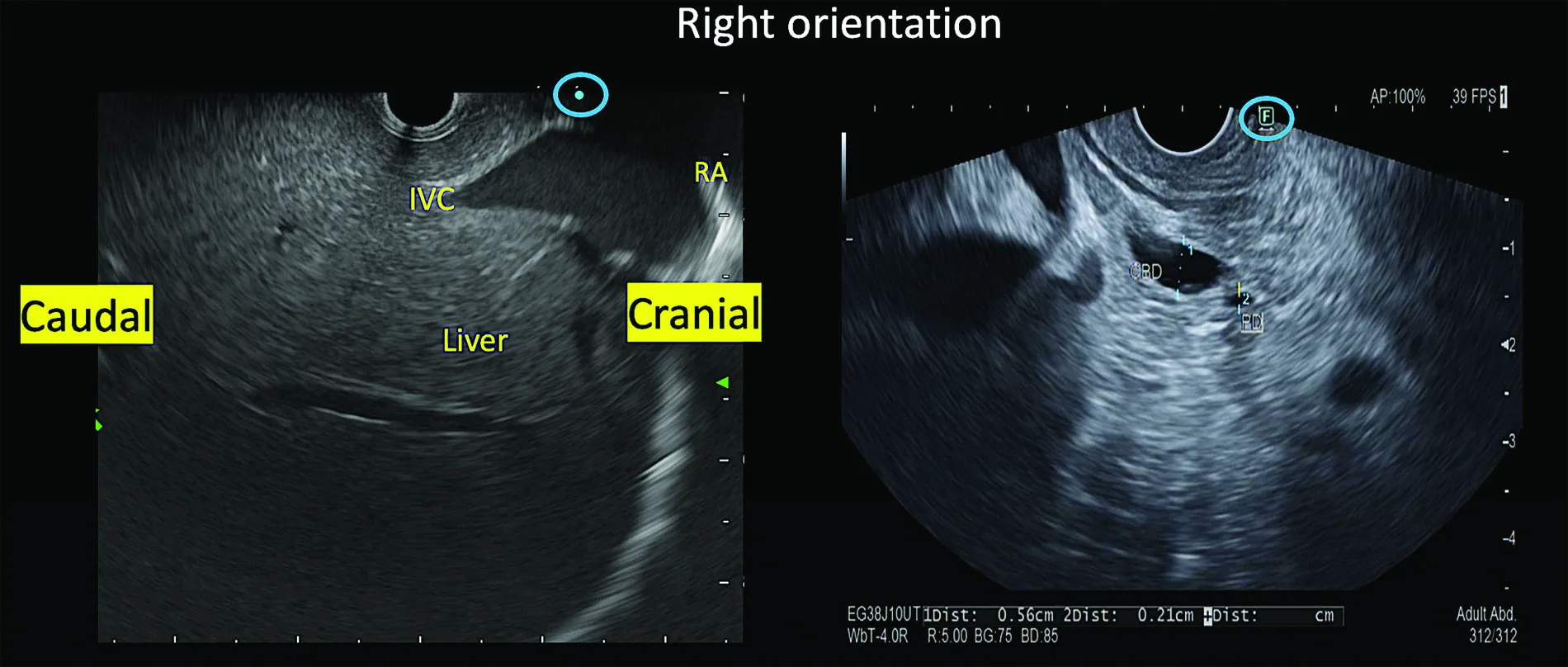

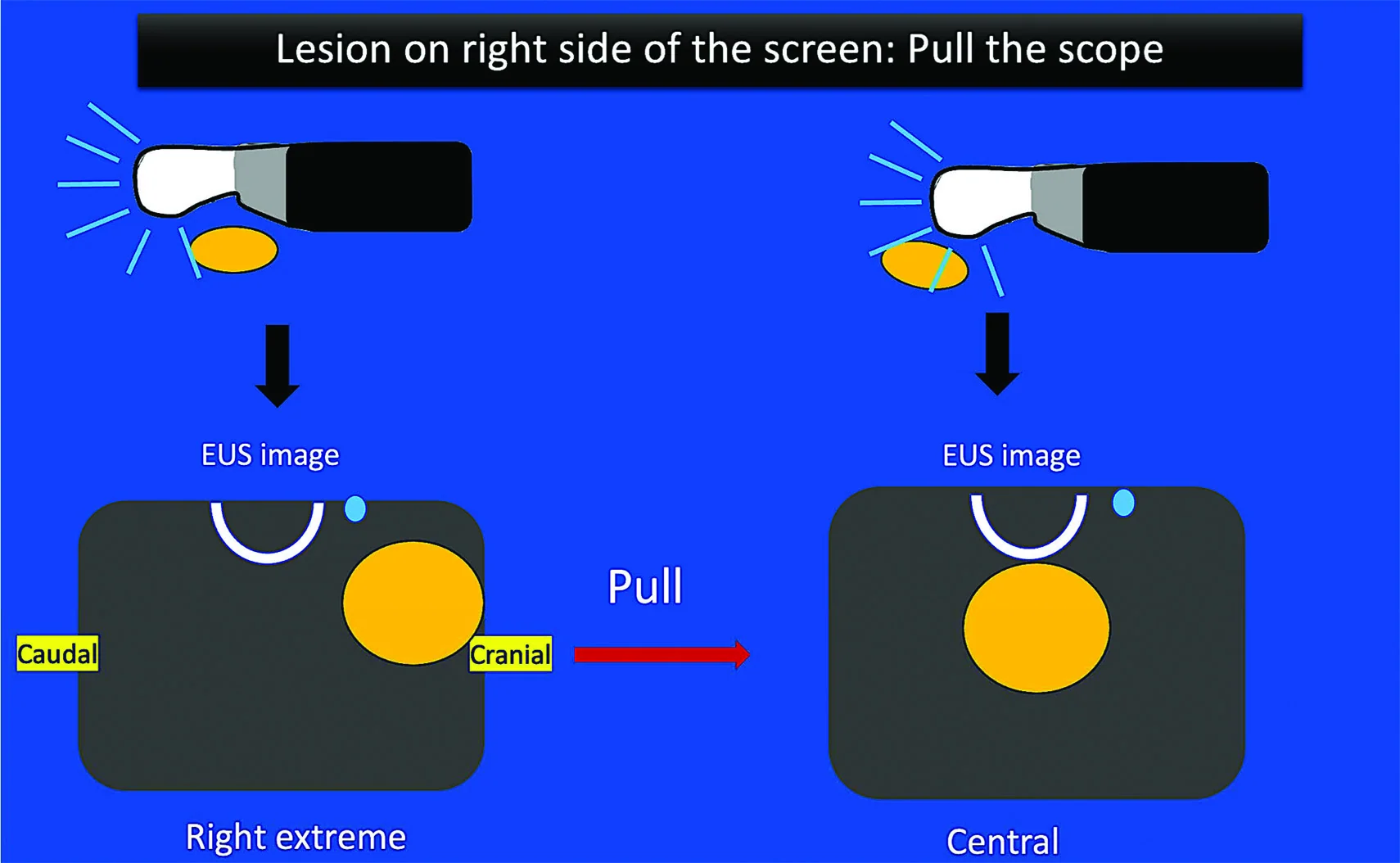

Linear EUS Pancreas Pictorial & Stations: Chavan R, Rajput S. Journal of Digestive Endoscopy 2023 — station-wise approach, homebases, “stack sign,” and manoeuvres for stomach, D1, D2.
Images 1 & 2 Pictorial Essay of Linear Endoscopic Ultrasound Examination of Pancreas Anatomy Chavan, Rajput et el :https://www.thieme-connect.com/products/ejournals/pdf/10.1055/s-0043-1770924.pdf
Rosemont Criteria (2009) — Summary for Chronic Pancreatitis
Major features:
Major A: Hyperechoic foci with acoustic shadowing (calcifications)
Major B: Lobularity with honeycombing
Minor features:
Hyperechoic strands; hyperechoic foci (no shadowing); lobularity without honeycombing; cysts; MPD dilatation; irregular MPD contour; side-branch dilatation; hyperechoic duct wall.
Categories:
Consistent with CP: Major A + Major B or Major A + ≥3 minor or Major B + ≥3 minor
Suggestive: Major A/B + <3 minor or ≥5 minor
Indeterminate: 3–4 minor, no major
Normal: <3 minor, no major
Use in clinical context (history, pain phenotype, pancreatic function, calcific burden) and with cross-sectional imaging; avoid over-calling age-related changes.
References below image 2
KUDO pit pattern
Kudo’s pit-pattern system helps you decide, in real time, whether a colorectal lesion is benign or malignant. Magnify the surface with dye spray or NBI, look at the crypt openings (“pits”), and match what you see to one of six patterns.
Type I round pits – healthy mucosa; non-neoplastic
Type II stellar / papillary pits – hyperplastic or inflammatory; non-neoplastic
Type IIIS small tubular pits (< 0.05 mm) & IIIL large tubular pits (> 0.05 mm) – adenoma; low invasion risk
Type IV branching / gyrus-like pits – villous adenoma or high-grade dysplasia
Type VI irregular pits – distorted crypts; superficial submucosal invasion likely
Type VN non-structured surface – pits lost; deep submucosal invasion almost certain
References below image 2
What is EmPath?
E
Join Us at EmPath
If
References
Image 1.Endoscopic management of colorectal polyps: From benign to malignant polyps – Scientific Figure on ResearchGate. Available from: https://www.researchgate.net/figure/The-Paris-endoscopic-classification-of-colorectal-polyps-Adapted-from23_fig1_354635288 [accessed 6 Jul 2025]

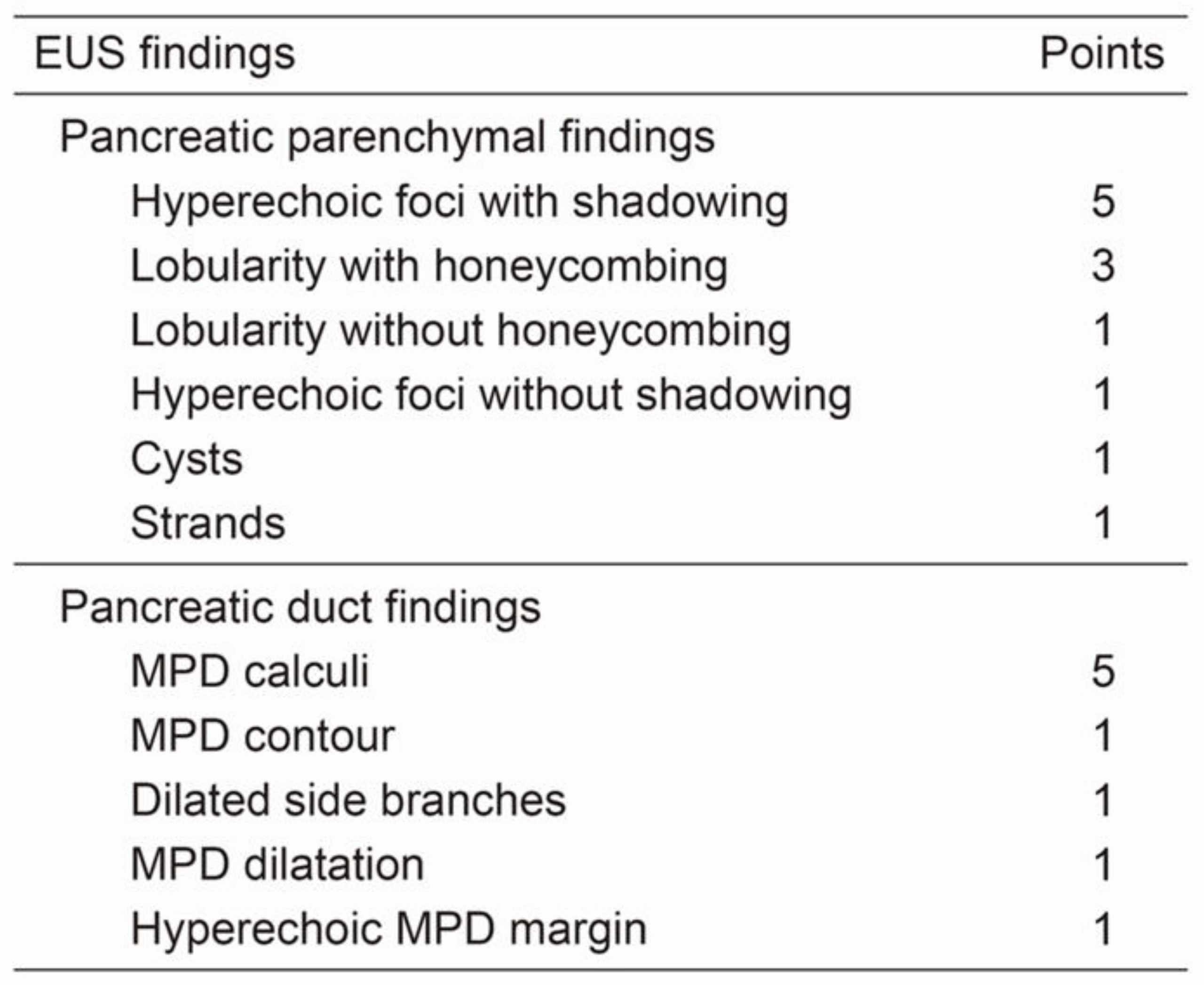

Image 2 Rosemont criteria “J. Clin. Med. 2023;12(16):5320 (MDPI). Licensed under CC BY 4.0.”
